PTO Applications
PTO Shafts for :

New Holland Discbines

Models: H7220, H7230, H7320, H7330, H7450, H7460, H7550, H7560



All discbines use multiple PTO shafts and a combination clutch.

The types of PTOs and clutch location vary from model to model.

Models below were originally equipped with Weasler and or Bondioli & Pavesi PTOs.

Model: Primary Intermediate Secondary HP RPM
H7220
35N CV

35N Square
65
540
H7230
55N CV or standard
Jack style 1.375-21
H8 double CV
80
540/1000
H7320
35N CV

35N Square
65
540
H7330
55N CV or standard
Jack Style 1.375-21
H8 double CV
80
540/1000
H7450

55N Double 80/50 CV or

55N standard (for swivel)

55N standard
90
1000
H7460
55N Standard
55N Square w/clutch
55N Standard
100
1000
H7550

55N Double 80/50 CV or

55N standard (for swivel)

55N standard
55N standard
90
1000
H7560
55N Standard
55N Square w/clutch
55N standard
100
1000

MAIN SHAFT : CAT 6 Constant Velocity

Part Number Tractor Implement Description
14605548 1.375-21 none 55N CV without implement yoke
14705548 1.750-20 none 55N CV without implement yoke
Implement input shaft is usually 1.375-21 spline

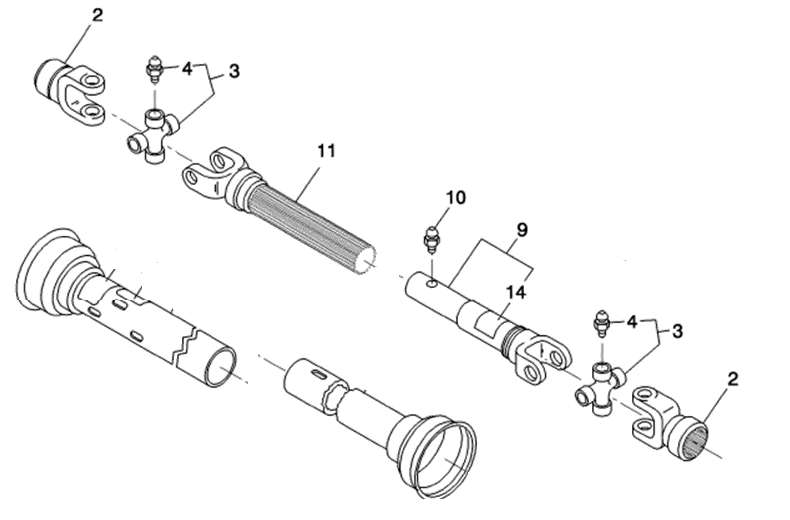

Most INTERMEDIATE and SECONDARY PTO: 55N Standard (Splined)

Secondary PTOs

Many, but not all Discbine secondary shafts are a double CV with combination clutch

FNT34 Combination Clutch (friction and overrunning)

please excuse any errors in our model numbers and specifications research
