PTO Applications
PTO Shafts for :

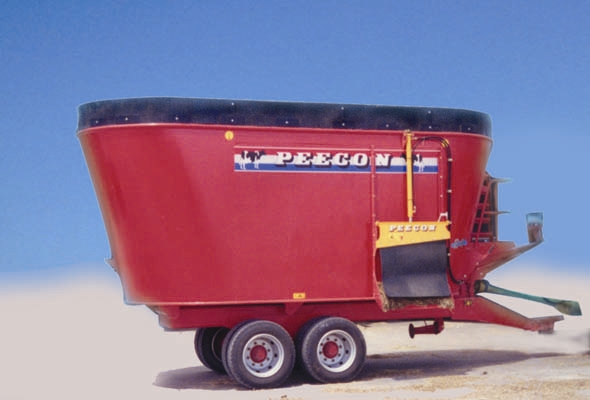

PEECON Vertical Feed Mixers

Models : 1100, 1300, 1500

(Original Equipment is Walterscheid 2580 - shown above)

PEECON MIXERS

MODEL CAPACITY # OF AUGERS MIN. POWER REQUIREMENTS
865
865 CFT
2
95 hp
1100
1100 CFT
2
135 hp
1300
1300 CFT
3
180 hp
1500
1500 CFT
3
200 hp

Our research indicates most tractors using 1.750-20 spline and input shaft on most models is 1.750-6 spline

Other combinations are available.

Mixer Input Requirements:

2500 Series Automatic Cutout Clutches

Part Number Model Diameter Splines Length c-e Torque
134467 K64/24 1.750 20 3500nm
135416 K64/24 1.375 6 2700nm
135986 K64/24 1.750 20 2700nm

2500 Series Shear Bolt Yokes

Part Number Model Diameter No of Splines C-to-bolt Bolt c-e Length Torque
355272 KB61/2 1.375 6 56 M10 2920nm
4250105 KB61/2 1.750 20 56M12 12 4200nm
338427 KB61/2 1.750 6 56 M10 2920nm
392340 KB61/2 1.9375 RD 0.50 KEY 56
please excuse any errors in our model numbers and specifications research
