PTO Applications
PTO Shafts for :

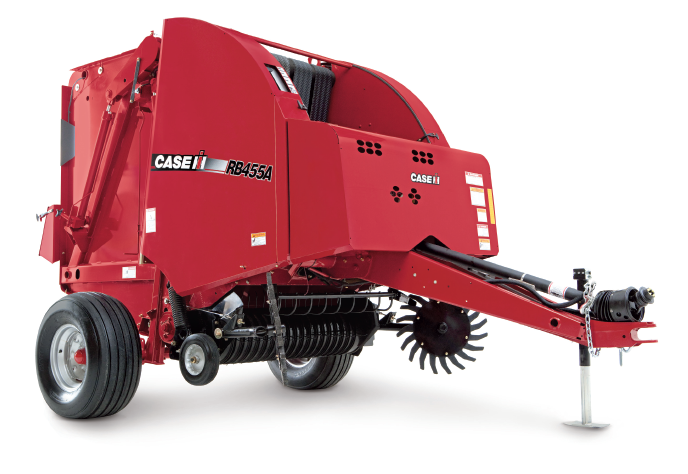

CASE IH Round Balers

Models: RB444, RB454, RB455A, RB464, RB554, RB564

CASE calls for CAT4 and CAT5 constant velocity drivelines depending on model, with friction clutch.

Input shafts are 1.375-6 or 1.375-21. Please call 800-824-0706 with your specifications.

MAIN SHAFT: CAT 3, 4, 5 Constant Velocity

Available for tractors using 1.375-6, 1.375-21, 1.750-20 spline

Input shaft is usually 1.375-6

Other combinations are available.

Models
PTO Shaft Size
PTO Required,
hp (kW)
RB444
CAT4
40 (30)
RB454
CAT4
60 (45)
RB454 Silage
CAT4
65 (48)
RB454 Rotor Cutter
CAT5
100 (75)
RB455A
CAT4
40 (30)
RB464
CAT5
70 (52)
RB554
CAT5
70 (52)
RB564
CAT5
80 (60)
Constant Velocity PTO Tractor

Base Part Number

(add implement device)

CAT3/540
1.375-6
CAT4/540
1.375-6
CAT4/1000
1.375-21
CAT5/540
1.375-6
CAT5/1000
1.375-21



Baler Input Requirements:

 Torque Protection

FT Clutches for 1.375-6 spline input

Universal Size Torque nm Part Number
CAT3 / S4
1000nm
CAT3 / S4
1000nm
CAT4 / S6
1800nm
CAT5 / S8
1450nm

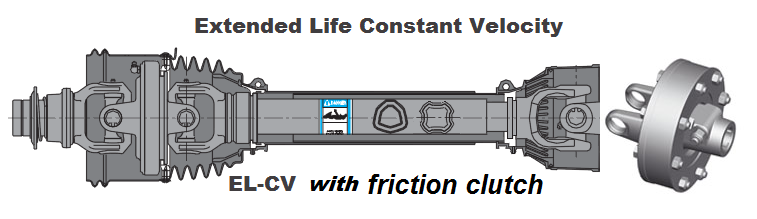

BYP FT42 Friction Clutch

please excuse any errors in our model numbers and specifications research
