PTO Applications

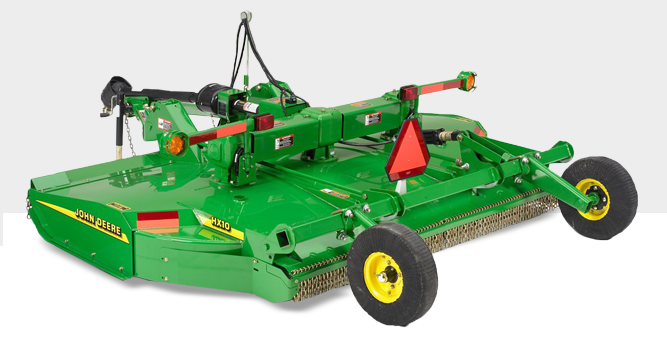

John Deere Multi Spindle Rotary Cutters

Models: HX10, HX14

USING CV DRIVELINES OR EQUAL ANGLE FOR PULL TYPE

MAIN SHAFT
MODEL TYPE HP Spindles PTO Driveline
HX10 PULL
60
2
CAT4 * equal angle or CV
HX10 LIFT
80
2
CAT5/6
HX14 PULL
60
2
CAT4 * equal angle or CV
HX14 LIFT
90
2
CAT5/6

click below to see PTO shaft details

non CV



Connecting yokes

Series Bore Part Number
CAT4 * 2400
1.375-6
195017
CAT4 * 2400
1.375-21
320684W
CAT4 * 2400
1.750-20
331053W
CAT5/6 * 2500
1.375-21
318384W
CAT5/6 * 2500
1.75-20
325027W

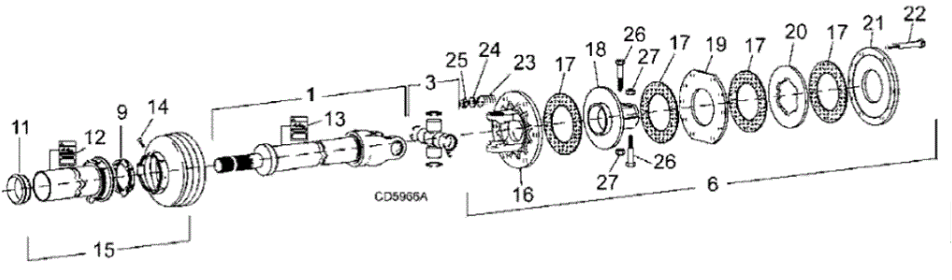

JACK SHAFT (see our spec sheet for Jack Shafts)

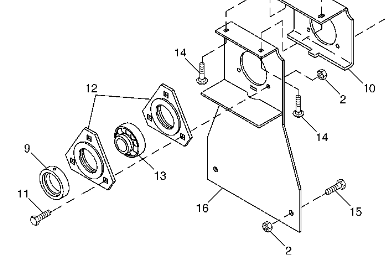

Support Bearing Mount

Item # Description Deere Part #
9
Lock Coller
AZ10020
10
Support
W46261
12
Flanged Housing
H103265
13
Ball Bearing
AZ19427
16
Support
AW34576

FRICTION CLUTCH AT CENTER GEAR BOX

K90 & K90/4T Friction Clutch

Series Bore Discs Torque Clutch Part Number
CAT4 * 2400
1.375-6
2
1000nm
CAT4 * 2400
1.375-6
4
1500nm
CAT4 * 2400
1.375-21
4
1400nm
CAT4 * 2400
1.750-20
4
1500nm
CAT5/6 * 2500
1.750-20
4
1500nm

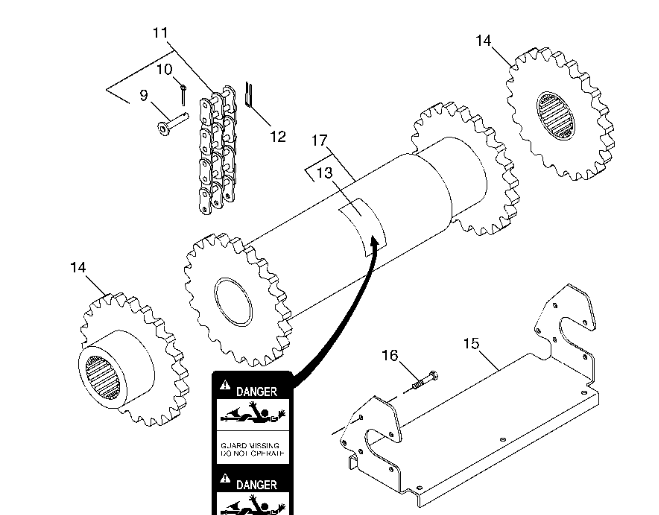

HX10 CROSS SHAFTS

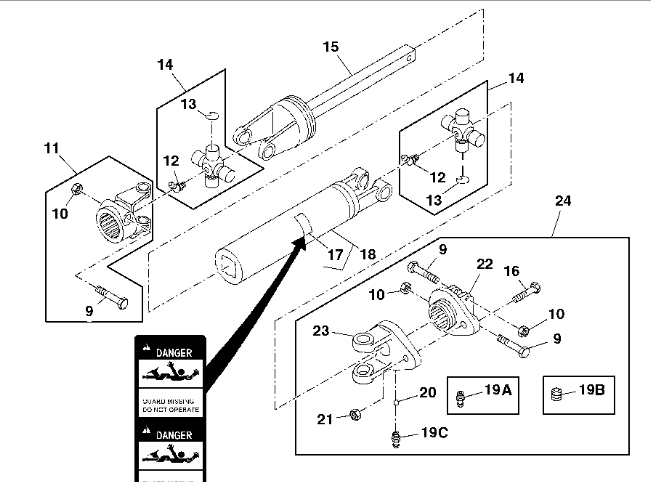

HX14 CROSS SHAFTS
