PTO Applications
PTO Shafts for :

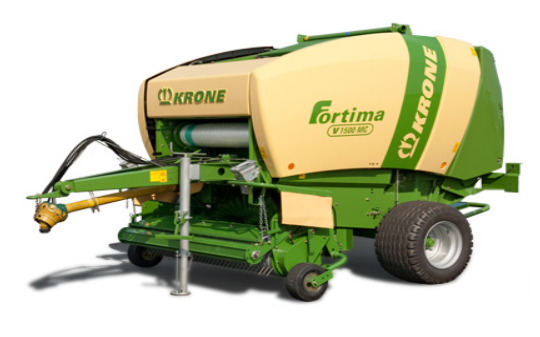

Krone Round Balers

Models : KR100 / 130 / 155 / 160 / 1250 / 1260 / 1500 / 1550



.

MAIN SHAFT : Constant Velocity with Clutch ** using both CAT3 and CAT4

Model PTO Protection

KR100/125/155

/130/160

Size 4 Standard *1210 * 1.375-6

Size 4 CV * 1210 * 1.375-6

FT34 * 1.375-6 * 1000nm
1500 / 1800 Size 4 or Size 6 CV with 1.375-6 FT32 @ 1000nm or FT42 @ 1450nm
1500V / 1250 MC 2380 or 2480 CV with 1.375-6 K64/2 Cutout @ 1050 or 1500nm * 1.375-6
1250 / 1550 size 4 (cat3) CV with 1.375-6 FT32 or FF1 @ 1000nm
1250 / 1500 some using size 6 CV (cat4) FT42 @ 1450nm
Constant Velocity PTO Tractor

Base Part Number

(add implement device)

CAT3/540
1.375-6
CAT4/540
1.375-6

Krone Round Balers are equipped with a friction or cutout clutch

Baler Input Requirements:

 Torque Protection

FT Clutches for 1.375-6 spline input

Universal Size Torque nm Part Number
CAT3 / S4
1000nm
CAT3 / S4
1000nm
CAT4 / S6
1800nm



BYP FT42 Friction Clutch

please excuse any errors in our model numbers and specifications research
