PTO Applications
PTO Shafts for :

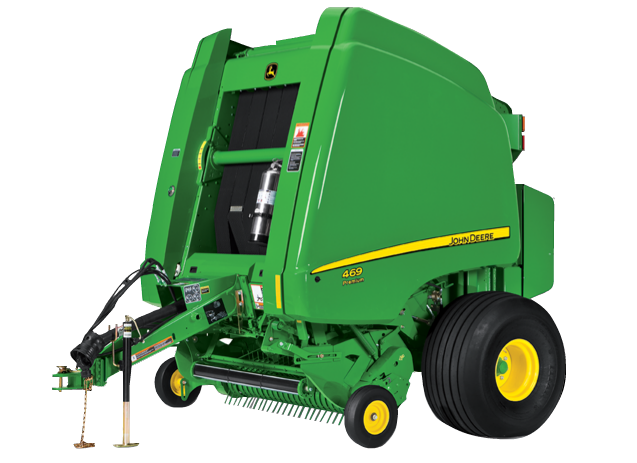

John Deere Round Balers and Premium Round Balers

Models: 469, 569 Round Balers and Premium Round Balers

John Deere uses CAT4 and CAT5 constant velocity drivelines depending on model, with friction clutch or cam clutch.

Original Equipment PTO Shaft is Weasler "Equal Arm" CV

Input shafts are 1.375-6 or 1.375-21. Please call 800-824-0706 with your specifications.

MAIN SHAFT: CAT 3, 4, 5 Constant Velocity

Available for tractors using:

1.375"-6 or 1.375"-21 spline

Other combinations are available.

If you have a 1.75" x 20 spline tractor output we can modify a PTO CV head for you. Please call!

Model PTO Protection
469 Standard CAT4 FRICTION CLUTCH
469 Premium CAT4 CAM CLUTCH
469 Silage CAT4 FRICTION CLUTCH
569 Standard CAT4 FRICTION CLUTCH
569 Premium CAT4 CAM CLUTCH
569 Silage CAT4 FRICTION CLUTCH

Original Equipment

OEM Weasler Half Shaft Replacements



Please check the telescoping spline diameter. Both sizes were used on various models.

OEM John Deere Half Shaft Replacements

Category Tractor splines Telescoping splines Part Number

Baler Input Requirements:

 Torque Protection

FT Clutches for 1.375-6 spline input

Universal Size Torque nm Part Number
CAT3 / S4
1000nm
CAT3 / S4
1000nm
CAT4 / S6
1450nm
CAT4 / S7
1450nm
CAT5 / S8
1450nm
CAT5 / S9
1450nm



BYP FT42 Friction Clutch

please excuse any errors in our model numbers and specifications research
